Suspension Front

Lamborghini Urus (2019-2022)

Illustration Number: 4070100

Find Your Part

Lamborghini Urus (2019-2022) - SUSPENSION FRONT (4070100)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0407151R FRONT WISHBONE LINK $360.16 To Order

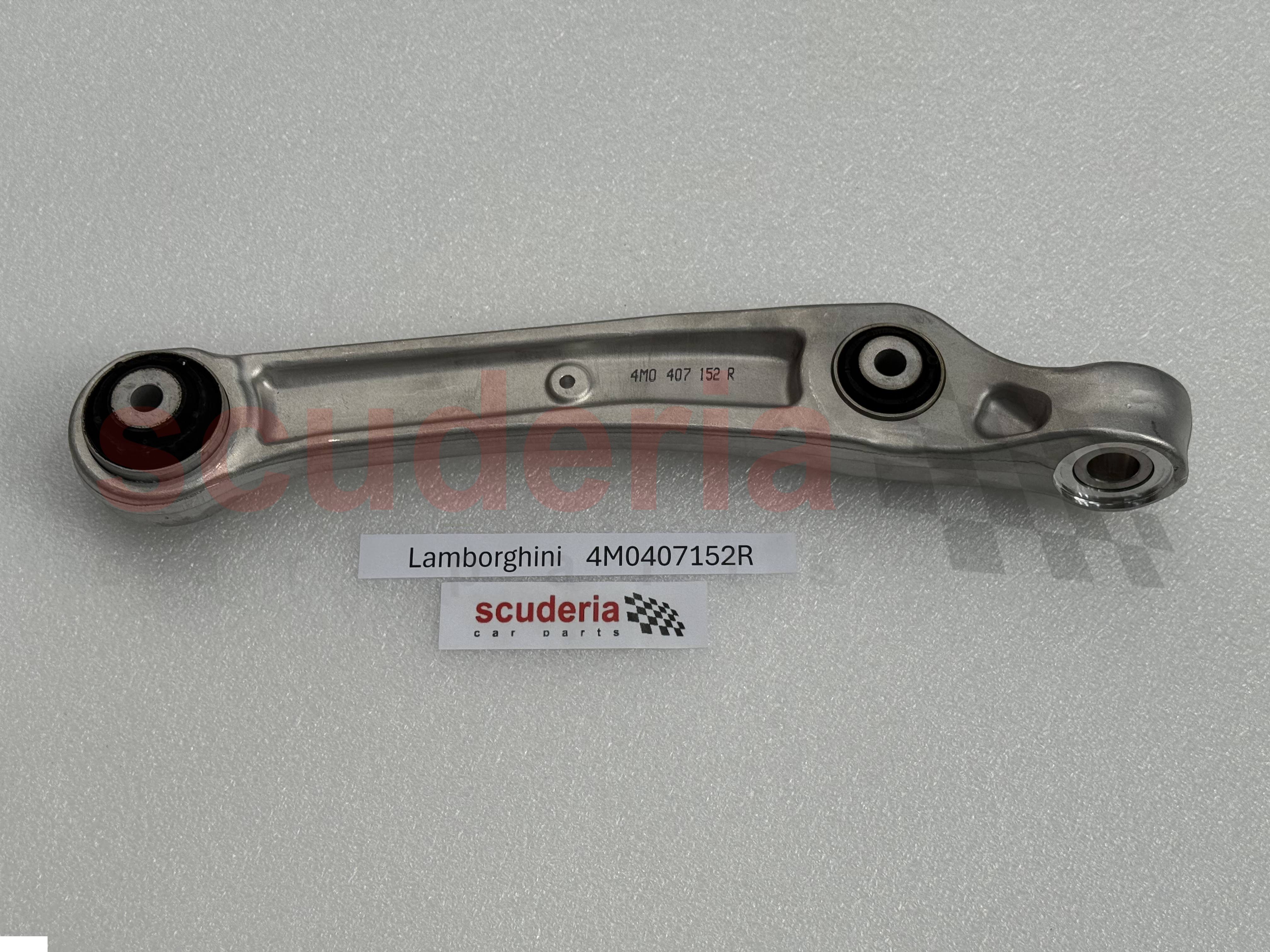

4M0407152R FRONT WISHBONE LINK $360.16 To Order
Photo Part No Description Price (each) Stock
4M0407181 BONDED RUBBER BUSH $46.61 To Order
Photo Part No Description Price (each) Stock
WHT007028 12-POINT HEAD BOLT $8.26 To Order
Photo Part No Description Price (each) Stock
WHT001987 HEX. NUT, SELF-LOCKING WITH WASHER $2.62 To Order
Photo Part No Description Price (each) Stock
WHT006151 HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5 $4.32 IN STOCK
Photo Part No Description Price (each) Stock
4M0407693F SUSPENSION GUIDE $483.18 IN STOCK
4M0407694F SUSPENSION GUIDE $493.85 IN STOCK
Photo Part No Description Price (each) Stock
4M0407183B HYDRO-MOUNTING $96.39 To Order
Photo Part No Description Price (each) Stock
N10817601 HEXAGON FLANGE SCREW (COMBI) $9.84 To Order
Photo Part No Description Price (each) Stock
8B3407505A CONTROL ARM,FRONT $241.59 IN STOCK
8B3407505A CONTROL ARM,FRONT $241.59 IN STOCK
8B3407506A CONTROL ARM,FRONT $241.59 IN STOCK
Photo Part No Description Price (each) Stock
4M0407509G GUIDE $286.21 IN STOCK
4M0407510G GUIDE $286.21 IN STOCK
Photo Part No Description Price (each) Stock
4M0407515A BONDED RUBBER BUSH $39.84 To Order
Photo Part No Description Price (each) Stock
N91221601 HEXAGON FLANGE SCREW (COMBI) $5.61 To Order
Photo Part No Description Price (each) Stock
WHT006542 HEXAGON FLANGE SCREW $8.26 To Order
Photo Part No Description Price (each) Stock
N10272302 HEXAGON COLLAR NUT SELF-LOCKING $2.28 IN STOCK
Photo Part No Description Price (each) Stock
4M0407253M WHEEL BEARING HOUSING $603.88 IN STOCK
4M0407254M WHEEL BEARING HOUSING $603.88 To Order
Photo Part No Description Price (each) Stock
WHT006151 HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5 $4.32 IN STOCK
Photo Part No Description Price (each) Stock
4M0407689C SWIVEL JOINT $114.10 IN STOCK
Photo Part No Description Price (each) Stock
N10241507 HEX COLLARED BOLT $3.76 To Order
Photo Part No Description Price (each) Stock
4M0407613 WHEEL HUB $1,552.23 IN STOCK
Photo Part No Description Price (each) Stock
4M0407625D DOUBLE (ANGLED) BALL BEARING WITH FLANGE $186.43 To Order
Photo Part No Description Price (each) Stock
WHT006966 SCREW WITH INT. SERRATIONS $5.40 To Order
Photo Part No Description Price (each) Stock
8E0407643A SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $12.77 IN STOCK
Photo Part No Description Price (each) Stock
4M0413037J SUSPENSION FORKS $192.78 To Order
4M0413038J SUSPENSION FORKS $192.78 To Order
Photo Part No Description Price (each) Stock
N10272202 HEXAGON HEAD BOLT (COMBI) $7.36 To Order
Photo Part No Description Price (each) Stock
N10106402 HEXAGON COLLAR NUT SELF-LOCKING $2.36 IN STOCK
Photo Part No Description Price (each) Stock
N10784702 HEXAGON FLANGE SCREW M12 X 1.5 X 85 $6.29 IN STOCK
Photo Part No Description Price (each) Stock
WHT001987 HEX. NUT, SELF-LOCKING WITH WASHER $2.62 To Order
Photo Part No Description Price (each) Stock
4M0411317K COUPLING ROD FRONT SUSPENSION $93.67 IN STOCK
Photo Part No Description Price (each) Stock
WHT007061 12-POINT HEAD BOLT $5.02 To Order
WHT007422 12-POINT HEAD BOLT $13.50 To Order
Photo Part No Description Price (each) Stock
N0150816 HEXAGON COLLAR NUT $2.10 IN STOCK
N10286110 HEXAGON COLLAR NUT SELF-LOCKING $2.16 IN STOCK
Photo Part No Description Price (each) Stock
WHT006917 12-POINT HEAD BOLT $4.51 To Order
WHT007423 12-POINT HEAD BOLT $13.50 To Order
Photo Part No Description Price (each) Stock

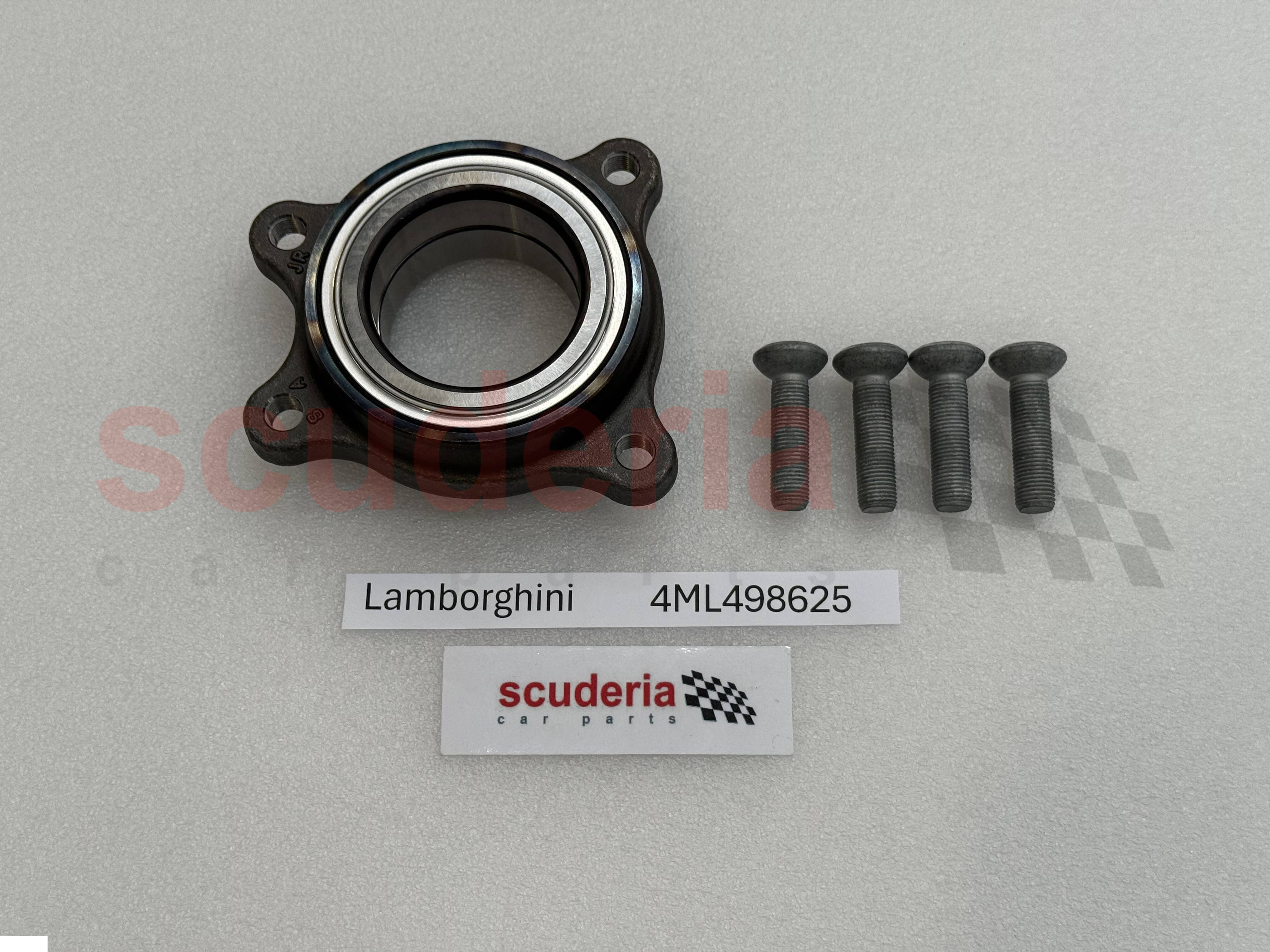

4ML498625 WHEEL BEARING WITH ASSEMBLY PARTS $378.57 IN STOCK
View All
SUSPENSION FRONT of Lamborghini Lamborghini Urus (2019-2022) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4M0407151R
FRONT WISHBONE LINK
LEFT 		$360.16 1
1 4M0407152R
FRONT WISHBONE LINK
RIGHT 		$360.16 1
3 4M0407181
BONDED RUBBER BUSH
FRONT - OUTER 		$46.61 2
4 WHT007028
12-POINT HEAD BOLT
M12X1 -5X100 		$8.26 2
5 WHT001987
HEX. NUT, SELF-LOCKING WITH WASHER
M12X1 -5 		$2.62 2
6 WHT006151
HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5
M14X1 -5
IN STOCK 		$4.32 2
7 4M0407693F
SUSPENSION GUIDE
LEFT FRONT
IN STOCK 		$483.18 1
7 4M0407694F
SUSPENSION GUIDE
RIGHT FRONT
IN STOCK 		$493.85 1
8 4M0407183B
HYDRO-MOUNTING
FRONT - INNER 		$96.39 2
9 N10817601
HEXAGON FLANGE SCREW (COMBI)
M12X1.5X140 		$9.84 2
10 8B3407505A
CONTROL ARM,FRONT
LEFT FRONT UPPER
IN STOCK 		$241.59 1
10 8B3407505A
CONTROL ARM,FRONT
LEFT - REPLACE FOR AXLE - ORDER ALSO RIGHT - PN: 4M0407506G-LEFT FRONT UPPER
IN STOCK 		$241.59 1
10 8B3407506A
CONTROL ARM,FRONT
RIGHT - REPLACE FOR AXLE - ORDER ALSO LEFT - PN: 4M0407505G-RIGHT FRONT UPPER
IN STOCK 		$241.59 1
11 4M0407509G
GUIDE
LEFT - REPLACE FOR AXLE - ORDER ALSO RIGHT-LEFT REAR UPPER
IN STOCK 		$286.21 1
11 4M0407510G
GUIDE
RIGHT - REPLACE FOR AXLE - ORDER ALSO LEFT-RIGHT REAR UPPER
IN STOCK 		$286.21 1
12 4M0407515A
BONDED RUBBER BUSH
INNER UPPER 		$39.84 4
13 N91221601
HEXAGON FLANGE SCREW (COMBI)
M10X85 		$5.61 4
15 WHT006542
HEXAGON FLANGE SCREW
M10X130 		$8.26 2
16 N10272302
HEXAGON COLLAR NUT SELF-LOCKING
M10
IN STOCK 		$2.28 (68.1% off) 2
18 4M0407253M
WHEEL BEARING HOUSING
LEFT
IN STOCK 		$603.88 1
18 4M0407254M
WHEEL BEARING HOUSING
RIGHT 		$603.88 1
19 WHT006151
HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5
M14X1 -5
IN STOCK 		$4.32 2
20 4M0407689C
SWIVEL JOINT
LEFT A. RIGHT
IN STOCK 		$114.10 2
21 N10241507
HEX COLLARED BOLT
M10X70 		$3.76 2
22 4M0407613
WHEEL HUB
IN STOCK 		$1,552.23 2
23 4M0407625D
DOUBLE (ANGLED) BALL BEARING WITH FLANGE
ORDER ALSO REF. 24 AND 25-102MM 		$186.43 2
24 WHT006966
SCREW WITH INT. SERRATIONS
M12X1 -25X42 		$5.40 4
25 8E0407643A
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M16X1 -5X72
IN STOCK 		$12.77 2
26 4M0413037J
SUSPENSION FORKS
LEFT 		$192.78 1
26 4M0413038J
SUSPENSION FORKS
RIGHT 		$192.78 1
28 N10272202
HEXAGON HEAD BOLT (COMBI)
M12X1 -5X95 		$7.36 2
29 N10106402
HEXAGON COLLAR NUT SELF-LOCKING
M12X1 -5
IN STOCK 		$2.36 2
30 N10784702
HEXAGON FLANGE SCREW M12 X 1.5 X 85
M12X1.5X85
IN STOCK 		$6.29 2
31 WHT001987
HEX. NUT, SELF-LOCKING WITH WASHER
M12X1 -5 		$2.62 2
32 4M0411317K
COUPLING ROD FRONT SUSPENSION
LEFT A. RIGHT
IN STOCK 		$93.67 2
33 WHT007061
12-POINT HEAD BOLT
M10X85 		$5.02 2
33 WHT007422
12-POINT HEAD BOLT
M12X85 		$13.50 2
34 N0150816
HEXAGON COLLAR NUT
M12X1 -5
IN STOCK 		$2.10 (70.5% off) 4
34 N10286110
HEXAGON COLLAR NUT SELF-LOCKING
M10
IN STOCK 		$2.16 (70% off) 4
35 WHT006917
12-POINT HEAD BOLT
M10X62 		$4.51 2
35 WHT007423
12-POINT HEAD BOLT
M12X65 		$13.50 2
37 4ML498625
WHEEL BEARING WITH ASSEMBLY PARTS
IN STOCK 		$378.57 2
