Crankcase

Lamborghini Urus (2018-2019)

Find Your Part

Lamborghini Urus (2018-2019) - CRANKCASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CRANKCASE HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
P2103151D SEALING FLANGE $493.32 To Order
Photo Part No Description Price (each) Stock
6M103051B SHAFT OIL SEAL $30.20 To Order
Photo Part No Description Price (each) Stock
P2103271 RESTRICTOR $4.37 To Order
Photo Part No Description Price (each) Stock
WHT008054 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $1.39 To Order
Photo Part No Description Price (each) Stock
55105277 SPRING PIN $2.10 IN STOCK
Photo Part No Description Price (each) Stock
N91180601 SEAL BOLT (COMBINATION) $6.34 To Order
Photo Part No Description Price (each) Stock
WHT008060 SEALING PLUG $9.52 To Order
Photo Part No Description Price (each) Stock
6C115444 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
N10693001 CYLINDER PIN $1.35 IN STOCK
Photo Part No Description Price (each) Stock
WHT007840A O-RING $2.79 To Order
Photo Part No Description Price (each) Stock
N10124306 HEXAGON SOCKET FLAT HEAD BOLT $1.51 IN STOCK
Photo Part No Description Price (each) Stock
22103139B DOWEL SLEEVE $7.36 IN STOCK
Photo Part No Description Price (each) Stock
WHT005804 SEALING PLUG $7.56 To Order
Photo Part No Description Price (each) Stock
N0138272 SEAL RING $2.99 To Order
Photo Part No Description Price (each) Stock
P2103035 SEALING PLUG $4.00 To Order
Photo Part No Description Price (each) Stock
6M115143 CENTRE SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
6M103158R JET $34.23 To Order
Photo Part No Description Price (each) Stock
P2103813B GEAR $94.48 To Order
Photo Part No Description Price (each) Stock
N10768201 FITTED BOLT, HEXAGON HEAD $1.15 To Order
Photo Part No Description Price (each) Stock
WHT008091 MULTI-POINT SOCKET HEAD BOLT WITH COLLAR $2.93 To Order
Photo Part No Description Price (each) Stock
BEARING SUPPORT Enquire To Order
View All

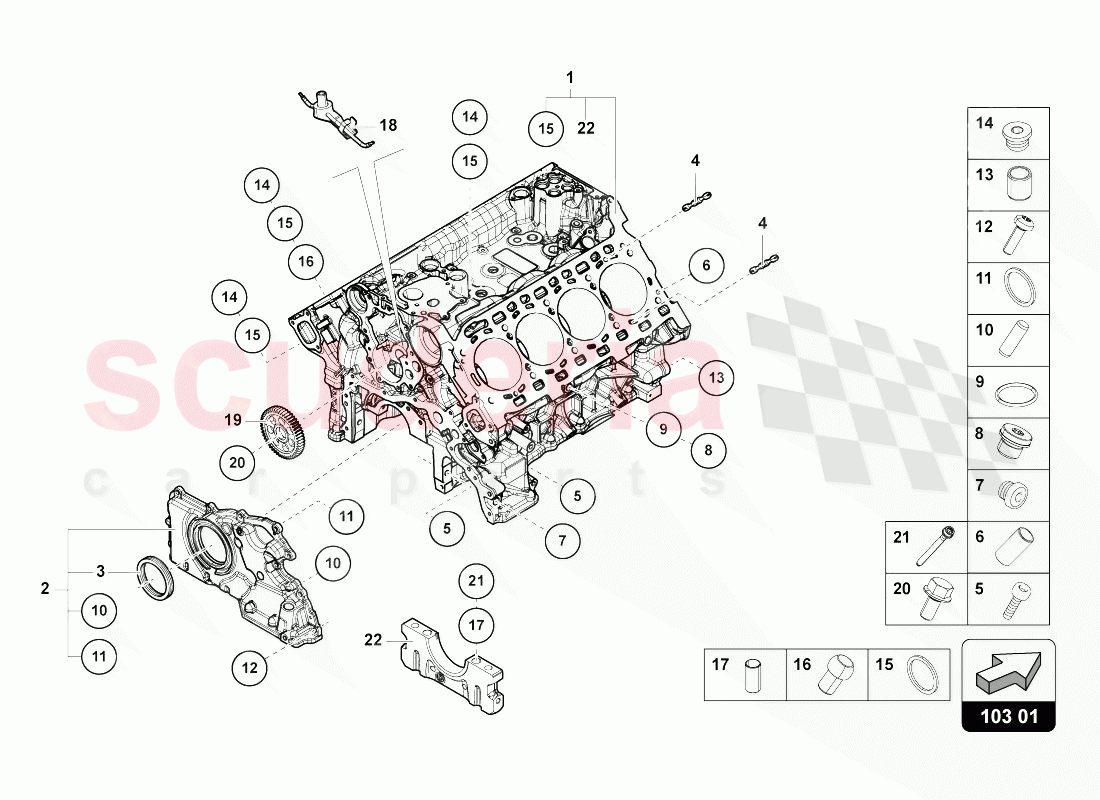

CRANKCASE of Lamborghini Lamborghini Urus (2018-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CRANKCASE HOUSING
TEMPORARY NON AVAILABLE 		- - Enquire
2 P2103151D
SEALING FLANGE 		$493.32 -
3 6M103051B
SHAFT OIL SEAL 		$30.20 -
4 P2103271
RESTRICTOR 		$4.37 -
5 WHT008054
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X30 		$1.39 -
6 55105277
SPRING PIN
IN STOCK 		$2.10 (70.8% off) -
7 N91180601
SEAL BOLT (COMBINATION)
M14X1,5X12 		$6.34 -
8 WHT008060
SEALING PLUG
M14X1,5 		$9.52 1
9 6C115444
O-RING
16X3 		- - Enquire
10 N10693001
CYLINDER PIN
6X18
IN STOCK 		$1.35 (81.1% off) 2
11 WHT007840A
O-RING
26X3 		$2.79 -
12 N10124306
HEXAGON SOCKET FLAT HEAD BOLT
M6X20
IN STOCK 		$1.51 10
13 22103139B
DOWEL SLEEVE
16X13,5
IN STOCK 		$7.36 2
14 WHT005804
SEALING PLUG
M22X1,5 		$7.56 2
15 N0138272
SEAL RING
22X27 N013827 		$2.99 (58.6% off) 2
16 P2103035
SEALING PLUG 		$4.00 1
17 6M115143
CENTRE SLEEVE 		- - Enquire
18 6M103158R
JET 		$34.23 4
19 P2103813B
GEAR 		$94.48 -
20 N10768201
FITTED BOLT, HEXAGON HEAD
M10X20 		$1.15 1
21 WHT008091
MULTI-POINT SOCKET HEAD BOLT WITH COLLAR
M10X111 		$2.93 -
22 BEARING SUPPORT
INCLUDED IN REF.:- 1 		- - Enquire
