SECURING PARTS of Lamborghini Lamborghini Revuelto Coupe

View All

Lamborghini Revuelto Coupe - SECURING PARTS

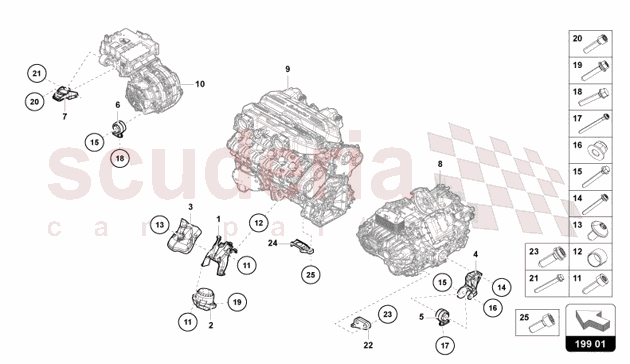

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B199307	SUPPORT	$450.75	To Order

Photo	Part No	Description	Price (each)	Stock
	47B199381A	ENGINE MOUNTING	$477.58	To Order

Photo	Part No	Description	Price (each)	Stock
	47B199387	HEAT SHIELD	$112.11	To Order

Photo	Part No	Description	Price (each)	Stock
	47B199334C	SUPPORT	$371.58	To Order

Photo	Part No	Description	Price (each)	Stock
	47B599438E	GEARBOX MOUNTING	$711.23	To Order
	47B599438F	GEARBOX MOUNTING	$711.23	To Order

Photo	Part No	Description	Price (each)	Stock
	47B599438	SUPPORT	$413.71	To Order

Photo	Part No	Description	Price (each)	Stock
	47B199497	SUPPORT	$320.50	To Order
	47B199498	SUPPORT	$320.50	To Order

Photo	Part No	Description	Price (each)	Stock
	N91135801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$2.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90904501	GROMMET	$6.58	To Order

Photo	Part No	Description	Price (each)	Stock
	N10786201	HEX SOCKET OVAL HEAD COLLARED	$0.90	To Order

Photo	Part No	Description	Price (each)	Stock
	N10831701	SCREW WITH INT. SERRATIONS	$3.08	To Order

Photo	Part No	Description	Price (each)	Stock
	N10640301	HEX COLLARED BOLT	$7.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10106403	HEXAGON COLLAR NUT SELF-LOCKING	$2.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10714501	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$3.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10314506	HEX COLLARED BOLT	$4.40	To Order

Photo	Part No	Description	Price (each)	Stock
	N91148901	MULTI-POINT SOCKET HEAD BOLT WITH COLLAR	$6.20	To Order

Photo	Part No	Description	Price (each)	Stock
	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$6.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10272202	HEXAGON HEAD BOLT (COMBI)	$7.41	To Order

Photo	Part No	Description	Price (each)	Stock
	7M199632B	BRACKET	$61.37	To Order

Photo	Part No	Description	Price (each)	Stock
	N91075801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$4.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	47B199307	SUPPORT	47B199307 SUPPORT	$450.75	1
2	47B199381A	ENGINE MOUNTING	47B199381A ENGINE MOUNTING	$477.58	1
3	47B199387	HEAT SHIELD	47B199387 HEAT SHIELD	$112.11	1
4	47B199334C	SUPPORT	47B199334C SUPPORT	$371.58	1
5	47B599438E	GEARBOX MOUNTING	47B599438E GEARBOX MOUNTING LEFT	$711.23	1
5	47B599438F	GEARBOX MOUNTING	47B599438F GEARBOX MOUNTING RIGHT	$711.23	1
6	47B599438	SUPPORT	47B599438 SUPPORT REAR	$413.71	1
7	47B199497	SUPPORT	47B199497 SUPPORT RIGHT FRONT	$320.50	1
7	47B199498	SUPPORT	47B199498 SUPPORT LEFT FRONT	$320.50	1
11	N91135801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N91135801 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X40 IN STOCK	$2.81	1
12	N90904501	GROMMET	N90904501 GROMMET	$6.58	1
13	N10786201	HEX SOCKET OVAL HEAD COLLARED	N10786201 HEX SOCKET OVAL HEAD COLLARED M6X12	$0.90	1
14	N10831701	SCREW WITH INT. SERRATIONS	N10831701 SCREW WITH INT. SERRATIONS M8X60	$3.08	1
15	N10640301	HEX COLLARED BOLT IN STOCK	N10640301 HEX COLLARED BOLT M12X1,5X100 IN STOCK	$7.07	1
16	N10106403	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10106403 HEXAGON COLLAR NUT SELF-LOCKING M12X1,5 IN STOCK	$2.30	1
17	N10714501	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10714501 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X90X80 IN STOCK	$3.37	1
18	N10314506	HEX COLLARED BOLT	N10314506 HEX COLLARED BOLT M10X50	$4.40	1
19	N91148901	MULTI-POINT SOCKET HEAD BOLT WITH COLLAR	N91148901 MULTI-POINT SOCKET HEAD BOLT WITH COLLAR M12X1,5X60	$6.20	1
20	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10660901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X40 IN STOCK	$6.52	1
21	N10272202	HEXAGON HEAD BOLT (COMBI)	N10272202 HEXAGON HEAD BOLT (COMBI) M12X1,5X95	$7.41	1
22	7M199632B	BRACKET	7M199632B BRACKET	$61.37	1
23	N91075801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91075801 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$4.73 MSRP: ~~7.10~~ (33.4% off)	1

Securing Parts

Lamborghini Revuelto Coupe

Lamborghini Revuelto Coupe - SECURING PARTS
