Phase Sensors And Electrical Components of Lamborghini Lamborghini Murcielago Roadster

View All

Lamborghini Murcielago Roadster - Phase Sensors And Electrical Components

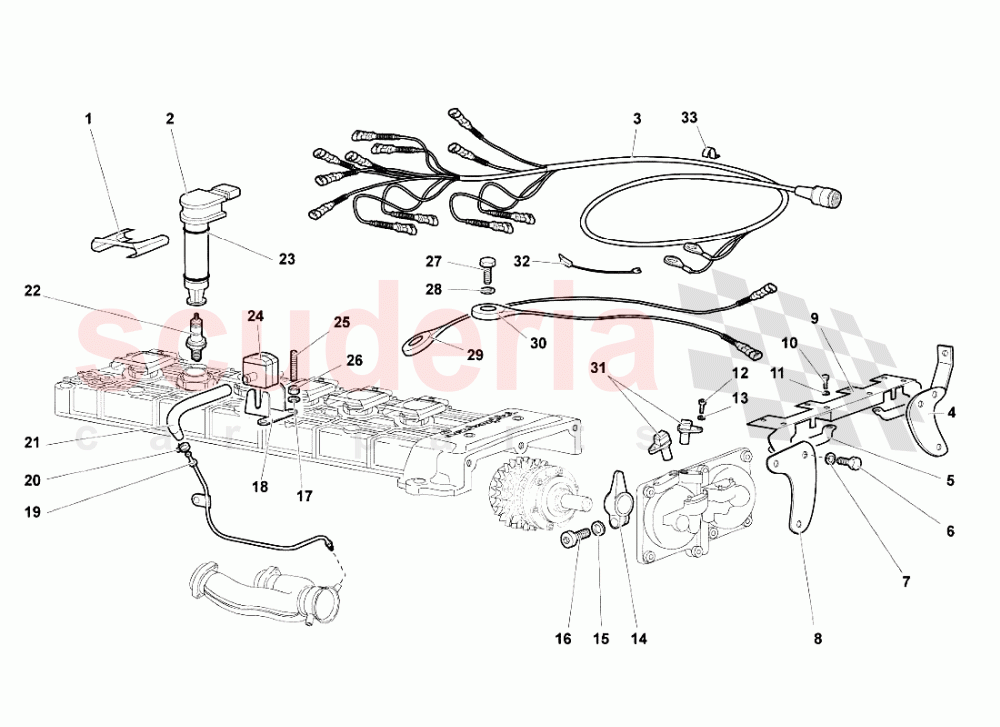

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
000	400251189B	CLAMP IN STOCK	400251189B CLAMP IN STOCK	$10.19	2
001	16003237	SPRING	16003237 SPRING	$61.60	12

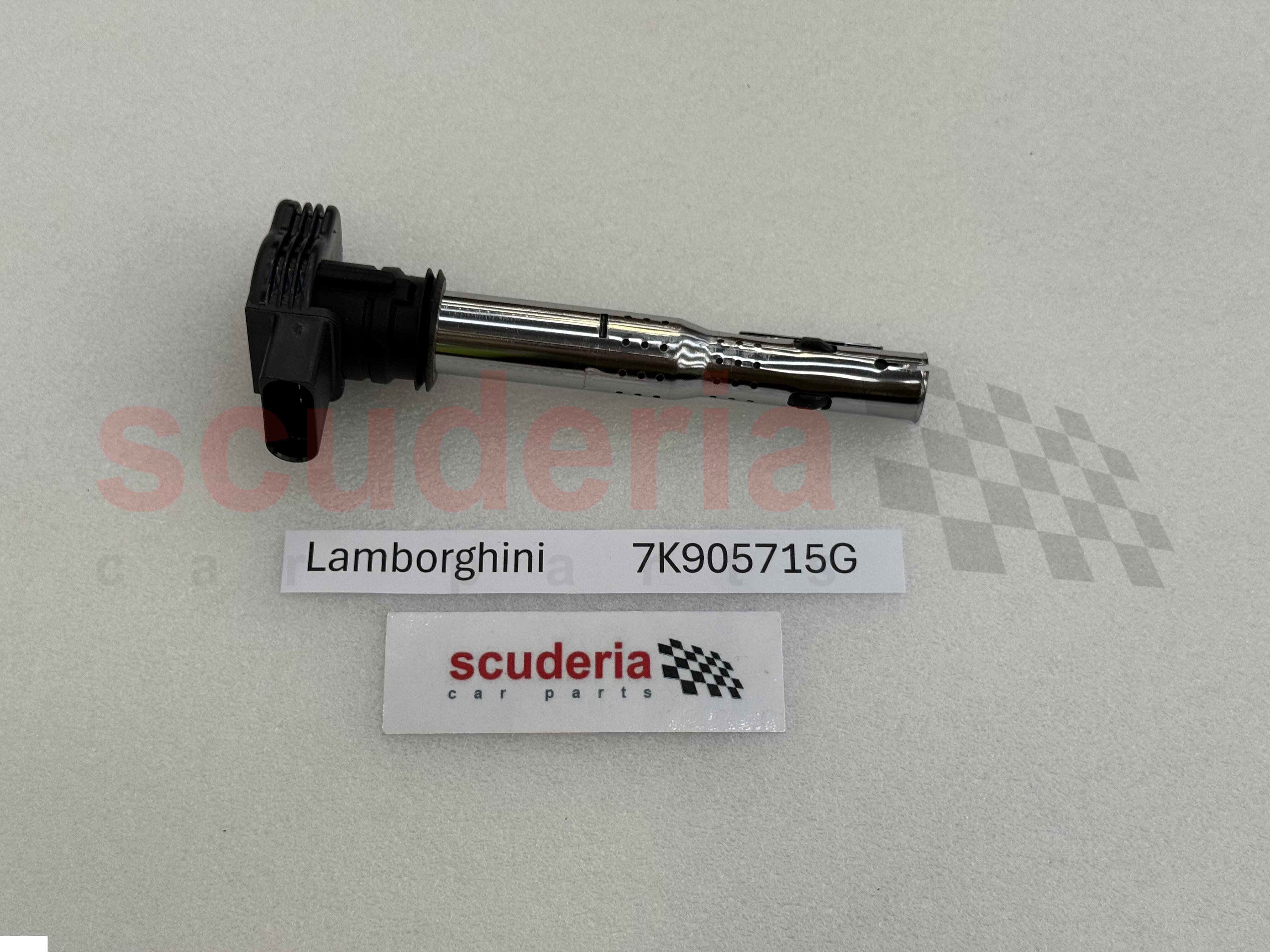

002	7K905715G	IGNITION COIL IN STOCK	7K905715G IGNITION COIL IN STOCK	$96.15	1
003	410971087	WIRING HARNESS 1-6	410971087 WIRING HARNESS 1-6	$1,312.58	1
003	410971088	WIRING HARNESS 7-12	410971088 WIRING HARNESS 7-12	$1,293.56	1
006	8100612	SCREW	8100612 SCREW	$0.15 MSRP: ~~7.37~~ (98% off)	2
007	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	2
009	417905357	BRACKET	417905357 BRACKET	$140.13	1
010	8100401	SCREW	8100401 SCREW	$0.45 MSRP: ~~7.30~~ (93.8% off)	4
011	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 IN STOCK	$0.31 MSRP: ~~7.35~~ (95.8% off)	4
012	8700670	SCREW	8700670 SCREW	$0.27 MSRP: ~~7.35~~ (96.3% off)	1
013	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	2
014	7M109227	PULSE GENERATOR	7M109227 PULSE GENERATOR	$332.26	1
015	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	1
016	8700617	SCREW IN STOCK	8700617 SCREW IN STOCK	$0.24 MSRP: ~~7.35~~ (96.7% off)	1
017	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.27	4
018	410906214	SUPPORT	410906214 SUPPORT	$112.13	2
019	7M906387	RH PIPE	7M906387 RH PIPE	$79.89	1
019	7M906389	LH PIPE	7M906389 LH PIPE	$296.12	1
020	8830131	CLAMP	8830131 CLAMP	$5.54	2
021	7M131893A	PIPE	7M131893A PIPE	$176.91	2
022	16003036	Spark Plug IN STOCK	16003036 Spark Plug IN STOCK	$54.22	12
023	8602304	SEAL RING IN STOCK	8602304 SEAL RING IN STOCK	$9.57	12
024	7L906261	SENSOR	7L906261 SENSOR	$1,287.21	2
025	8300613	STUD BOLT	8300613 STUD BOLT	$4.68 MSRP: ~~5.10~~ (8.2% off)	2
027	8700810	SCREW	8700810 SCREW	$0.60 MSRP: ~~7.28~~ (91.8% off)	4
028	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 IN STOCK	$0.31 MSRP: ~~7.35~~ (95.8% off)	4
029	7M905377A	SENSOR	7M905377A SENSOR	$123.15	2
030	7M905377	SENSOR	7M905377 SENSOR	$118.82	2
031	86927321	TIMING SENSOR	86927321 TIMING SENSOR	$114.54 MSRP: ~~118.00~~ (2.9% off)	2
032	400971164	WIRING HARNESS IN STOCK	400971164 WIRING HARNESS IN STOCK	$109.76	1
033	410868630	BRACKET	410868630 BRACKET	$53.59	4
