CRANKCASE AND LOWER MOUNTING of Lamborghini Lamborghini Murcielago

View All

Lamborghini Murcielago - CRANKCASE AND LOWER MOUNTING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram

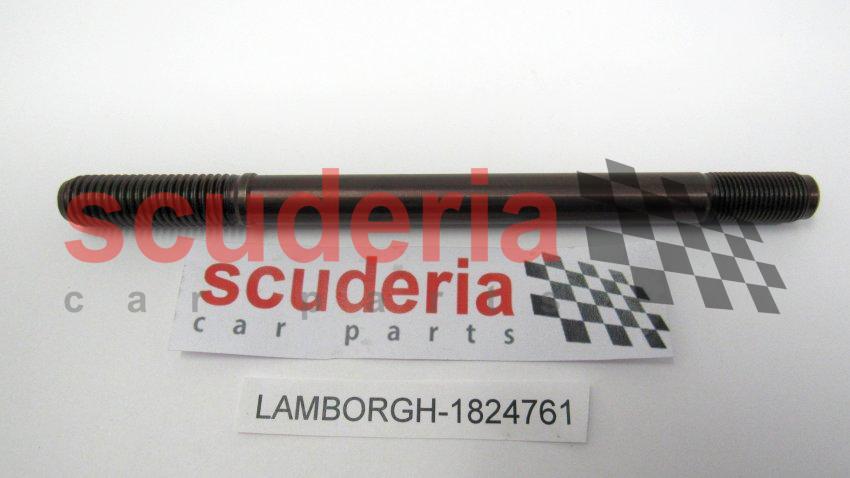

001	1824761	STUD BOLT	1824761 STUD BOLT	$96.82	28
002	8401230	WASHER IN STOCK	8401230 WASHER IN STOCK	$54.84	28
003	1120924	CAP NUT IN STOCK	1120924 CAP NUT IN STOCK	$34.42 MSRP: ~~38.15~~ (9.8% off)	28
004	WHT003085	SEAL RING	WHT003085 SEAL RING	$4.12 MSRP: ~~7.06~~ (41.6% off)	12
005	7M103321A	87 DIAMETER CYLINDER LINER	7M103321A 87 DIAMETER CYLINDER LINER	$6,917.91	12
006	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.27	2
007	8700609	SCREW	8700609 SCREW	$0.50 MSRP: ~~7.31~~ (93.2% off)	2
008	8300807	STUD BOLT	8300807 STUD BOLT	$15.66	1
009	8300833	STUD BOLT	8300833 STUD BOLT	$5.75 MSRP: ~~6.30~~ (8.7% off)	2
010	N0444416	STUD BOLT IN STOCK	N0444416 STUD BOLT IN STOCK	$3.25 MSRP: ~~7.04~~ (53.8% off)	2
011	WHT003098	DOWEL	WHT003098 DOWEL	$28.09	2
012	8301050	STUD BOLT	8301050 STUD BOLT	$30.13	8
013	8601201	SEAL RING IN STOCK	8601201 SEAL RING IN STOCK	$0.11 MSRP: ~~7.38~~ (98.5% off)	2
014	8300833	STUD BOLT	8300833 STUD BOLT	$5.75 MSRP: ~~6.30~~ (8.7% off)	1
015	WHT003028	THREADED PIN	WHT003028 THREADED PIN	$21.04	2
016	410109445	KEY IN STOCK	410109445 KEY IN STOCK	$1.35 MSRP: ~~7.17~~ (81.2% off)	1
017	8101642	SCREW IN STOCK	8101642 SCREW IN STOCK	$4.25 MSRP: ~~4.55~~ (6.6% off)	1
018	WHT003056	WASHER IN STOCK	WHT003056 WASHER IN STOCK	$2.03 MSRP: ~~7.03~~ (71.1% off)	1
019	7M105255	PULLEY	7M105255 PULLEY	$1,109.67	1
020	WHT003103	SEAL RING IN STOCK	WHT003103 SEAL RING IN STOCK	$60.83	1
021	400147003	ENGINE BLOCK	400147003 ENGINE BLOCK	$24,720.60	1
022	8700861	SCREW	8700861 SCREW	$1.58 MSRP: ~~7.12~~ (77.8% off)	4
023	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.12	4
024	8300902	STUD BOLT	8300902 STUD BOLT	$8.73 MSRP: ~~9.55~~ (8.6% off)	5
025	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.78	14
026	8410815	WASHER	8410815 WASHER	$0.20 MSRP: ~~7.37~~ (97.3% off)	14
027	8300826	STUD BOLT	8300826 STUD BOLT	$10.86	3
028	7M103729	PANEL	7M103729 PANEL	$44.27	1
029	7M103730	PANEL	7M103730 PANEL	$41.61	3
030	8700416	SCREW	8700416 SCREW	$0.15 MSRP: ~~7.37~~ (98% off)	12
031	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 IN STOCK	$3.56 MSRP: ~~7.38~~ (51.8% off)	12
032	8201221	NUT	8201221 NUT	$3.06	14
033	7M103749	PANEL	7M103749 PANEL	$43.18	2
034	WHT003046	WASHER	WHT003046 WASHER	$109.30	14
035	8301238	STUD BOLT	8301238 STUD BOLT	$15.85	14
036	8300917	STUD BOLT	8300917 STUD BOLT	$12.11	13

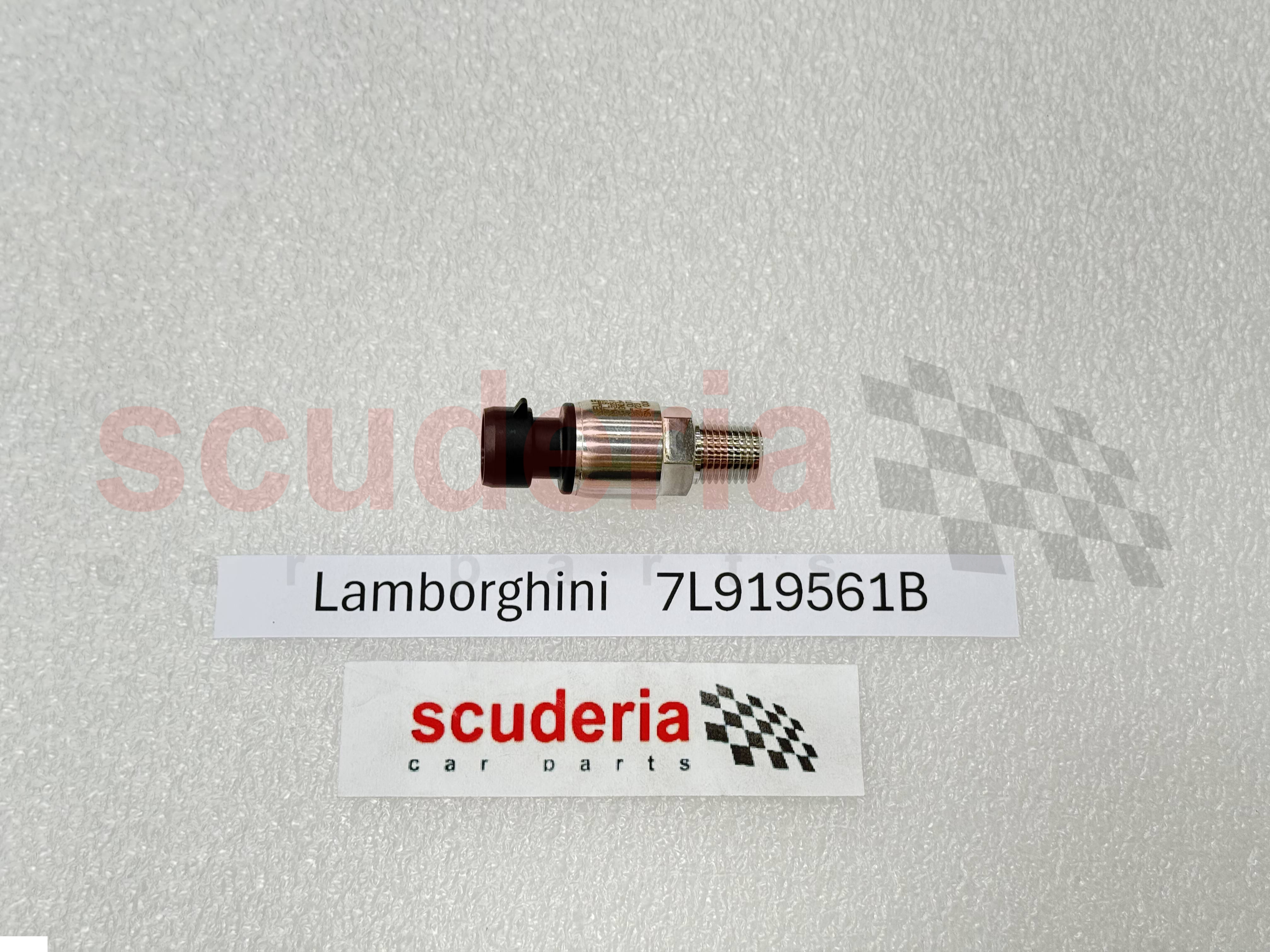

037	7L919561B	Pressure Sensor IN STOCK	7L919561B Pressure Sensor IN STOCK	$842.27	1
038	WHT003097	DOWEL	WHT003097 DOWEL	$10.71	4
039	WHT003031	STUD BOLT	WHT003031 STUD BOLT	$9.07	1
040	8400820	WASHER	8400820 WASHER	$16.74	14
