Lamborghini Gallardo LP570 4 SL - Electrical System 2

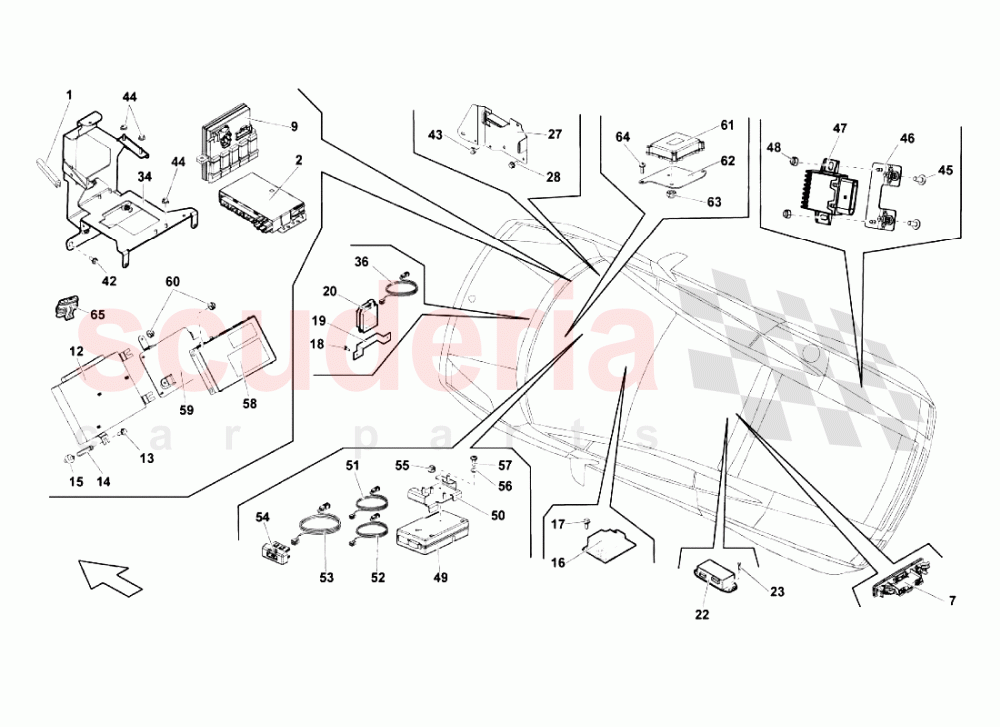

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	823881763	EDGE PROTECTION	823881763 EDGE PROTECTION	$3.43	1
002	8H0959433M	COMFORT CONTROL UNIT (433.92 MHZ REMOTE CONTROL)	8H0959433M COMFORT CONTROL UNIT (433.92 MHZ REMOTE CONTROL)	$545.34	1
007	8N8951177	VOLUMETRIC SENSOR (ANTI-THEFT SYSTEM)	8N8951177 VOLUMETRIC SENSOR (ANTI-THEFT SYSTEM)	$232.72	1
009	400907279A	ILM CONTROL UNIT	400907279A ILM CONTROL UNIT	$885.19	1
012	400959433BF	GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	400959433BF GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	$6,759.40	1
013	N90847903	Screw M6X15 IN STOCK	N90847903 Screw M6X15 IN STOCK	$1.09	3
014	400972895	SPACER	400972895 SPACER	$154.08	3
015	400972081B	FLEXIBLE SUPPORT	400972081B FLEXIBLE SUPPORT	$67.86	3
016	408959655	AIRBAG CONTROL UNIT + SENSOR	408959655 AIRBAG CONTROL UNIT + SENSOR	$812.91	1
017	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.51	3
018	N90847903	Screw M6X15 IN STOCK	N90847903 Screw M6X15 IN STOCK	$1.09	2
019	400807777	BRACKET	400807777 BRACKET	$18.64	1
020	8E0909511	BOX DOOR CONTROL E.C.U. (EUROPEAN VERSION)	8E0909511 BOX DOOR CONTROL E.C.U. (EUROPEAN VERSION)	$1,199.71	1
022	400907441E	REAR VIEW CAMERA CONTROL UNIT	400907441E REAR VIEW CAMERA CONTROL UNIT	$1,376.00	1
023	N10082911	SCREW M6X16 IN STOCK	N10082911 SCREW M6X16 IN STOCK	$0.64	2
027	400907371C	BRACKET	400907371C BRACKET	$23.33	1
028	N90847903	Screw M6X15 IN STOCK	N90847903 Screw M6X15 IN STOCK	$1.09	3
034	400907285C	BRACKET	400907285C BRACKET	$179.45	1
036	400971257	WIRING HARNESS BOX DOOR CONTROL E.C.U.	400971257 WIRING HARNESS BOX DOOR CONTROL E.C.U.	$39.69	1
042	N10049308	HEXAGON HEAD BOLT (COMBI) IN STOCK	N10049308 HEXAGON HEAD BOLT (COMBI) IN STOCK	$1.64	3
043	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.20	1
044	N10017304	HEXAGON COLLAR NUT IN STOCK	N10017304 HEXAGON COLLAR NUT IN STOCK	$1.71	8
045	N90993801	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION) IN STOCK	N90993801 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION) IN STOCK	$1.54 MSRP: ~~7.13~~ (78.4% off)	2
046	420907815A	BRACKET	420907815A BRACKET	$22.12	1
047	4F1906093C	CONTROL UNIT FUEL PUMP	4F1906093C CONTROL UNIT FUEL PUMP	$385.53	1
048	N02300212	NUT M6	N02300212 NUT M6	$0.28 MSRP: ~~7.36~~ (96.2% off)	2
049	400035785A	CONTROL UNIT AMI	400035785A CONTROL UNIT AMI	$648.04	1
050	400907372B	BRACKET - TPMS - AMI	400907372B BRACKET - TPMS - AMI	$50.68	1
051	4F0051510K	ADAPTER	4F0051510K ADAPTER	$87.38	1
052	4F0051510G	ADAPTER	4F0051510G ADAPTER	$60.95	1
053	7L6971199	WIRING HARNESS	7L6971199 WIRING HARNESS	$247.30	1
054	4F0035909	TRIM FOR CONNECTION OF AUDIO SOURCES	4F0035909 TRIM FOR CONNECTION OF AUDIO SOURCES	$9.64	1
055	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.20	2
056	N10663401	WASHER IN STOCK	N10663401 WASHER IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	2
057	WHT003114	SCREW	WHT003114 SCREW	$5.14	2
065	410971946	CONNECTOR	410971946 CONNECTOR	$244.77	1
