#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470119363E	AIR GUIDE	470119363E AIR GUIDE	$522.51	1
001	470119364E	AIR GUIDE	470119364E AIR GUIDE	$522.51	1
002	470827281B	AIR GUIDE GRILLE	470827281B AIR GUIDE GRILLE	$39.69	1
002	470827282B	AIR GUIDE GRILLE	470827282B AIR GUIDE GRILLE	$39.69	1
004	N0154487	SPEED NUT IN STOCK	N0154487 SPEED NUT IN STOCK	$0.50	6
005	N90986803	HEXAGON SOCKET HEAD PANEL BOLT 2 X13 IN STOCK	N90986803 HEXAGON SOCKET HEAD PANEL BOLT 2 X13 IN STOCK	$0.95	6
006	N10661002	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N10661002 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$0.71 MSRP: ~~7.27~~ (90.2% off)	8
007	N90780903	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780903 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.93	6
008	470117331D	AIR GUIDE	470117331D AIR GUIDE	$525.02	1
008	470117332D	AIR GUIDE	470117332D AIR GUIDE	$550.39	1
009	470122193D	AIR DUCT CARDBOARD	470122193D AIR DUCT CARDBOARD	$1,222.54	1
009	470122194D	AIR DUCT CARDBOARD	470122194D AIR DUCT CARDBOARD	$1,222.54	1
010	470117085B	ARM	470117085B ARM	$10.29	1
010	470117086B	ARM	470117086B ARM	$10.29	1
011	N91083301	POP RIVET	N91083301 POP RIVET	$1.64 MSRP: ~~7.14~~ (77% off)	4

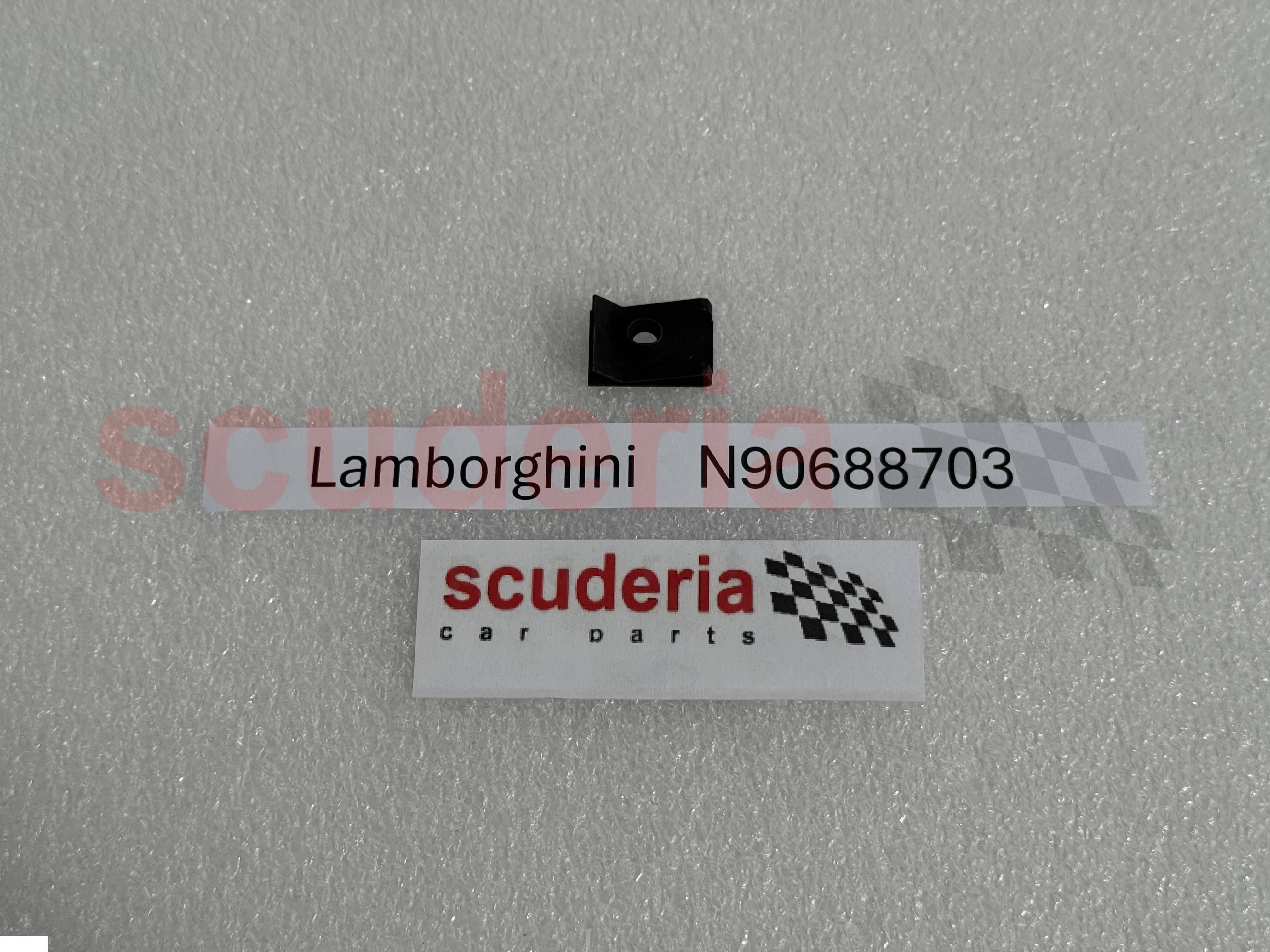

012	N90688703	SPEED NUT CLAMP M6 X 23 8 X 16 IN STOCK	N90688703 SPEED NUT CLAMP M6 X 23 8 X 16 IN STOCK	$1.15	4
013	N01166623	WASHER IN STOCK	N01166623 WASHER IN STOCK	$1.16	4
