Left Hand Cylinder Head

Ferrari 430 Spider

Find Your Part

Ferrari 430 Spider - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
219173 LH HEAD COMPLETE WITH GUIDES $6,622.82 To Order
204808 LH HEAD COMPLETE WITH GUIDES Enquire To Order
206797 LH HEAD COMPLETE WITH GUIDES $2,703.50 To Order
Photo Part No Description Price (each) Stock
221341 LH CYLINDER HEAD COVER $442.89 To Order
221341 LH CYLINDER HEAD COVER $442.89 To Order
224063 LH CYLINDER HEAD COVER $1,112.73 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
198928 LH Head Cover Gasket $41.22 IN STOCK
Photo Part No Description Price (each) Stock
229163 HEAT SHIELD $322.28 To Order
Photo Part No Description Price (each) Stock
212466 STUD BOLT $6.34 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
156834 ALLEN SCREW M6 X 30 $3.27 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
10441590 BRACKET WITH SHEATH $0.52 IN STOCK
Photo Part No Description Price (each) Stock
124342 THREADED CONNECTOR $6.25 IN STOCK
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.90 To Order
Photo Part No Description Price (each) Stock
180267 OIL NON RETURN VALVE $35.11 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 $0.14 IN STOCK
Photo Part No Description Price (each) Stock
164400 THREADED PLUG $3.35 IN STOCK
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.42 IN STOCK
223982 SPARK PLUG TUBE SEAL $2.42 IN STOCK
187706 Spark Plug Sleeve Gasket $7.98 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
211641 STUD BOLT $0.99 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.03 To Order
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG $1.11 To Order
Photo Part No Description Price (each) Stock
134233 O-RING $0.45 To Order
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.29 IN STOCK
Photo Part No Description Price (each) Stock
13541224 STUD BOLT $136.76 To Order
Photo Part No Description Price (each) Stock
13516624 STUD BOLT $0.29 To Order
Photo Part No Description Price (each) Stock
250646 Variable Valve Timing Adjuster Solenoid Valve $931.62 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11087376 3-POINT CIRCLIP D.12 $0.15 IN STOCK
Photo Part No Description Price (each) Stock
184681 OIL PRESSURE REGULATOR VALVE $439.59 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
219866 LH INTAKE TIMING SENSOR $303.20 To Order
219867 LH EXHAUST CAMSHAFT TIMING SENSOR $257.35 IN STOCK
Photo Part No Description Price (each) Stock
207422 BRACKET $50.26 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
220239 CAP $6.73 To Order
Photo Part No Description Price (each) Stock
220245 GASKET $0.14 To Order
View All

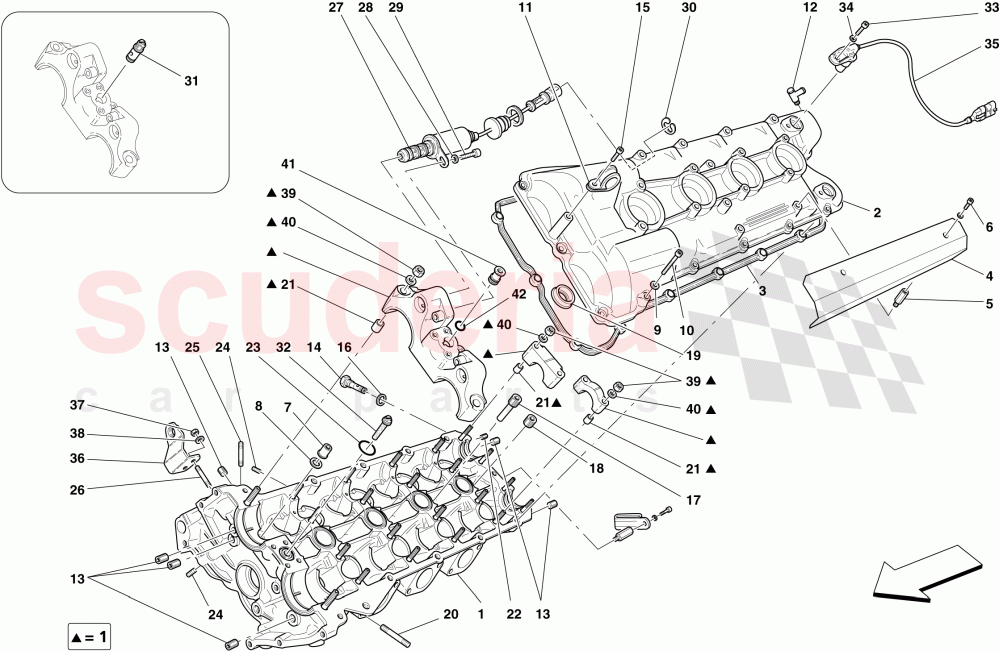

LEFT HAND CYLINDER HEAD of Ferrari Ferrari 430 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 219173
LH HEAD COMPLETE WITH GUIDES
Applicable up to MY 06; Applicable from engine No. 97781 up to engine No. 99607 		$6,622.82 1
1 204808
LH HEAD COMPLETE WITH GUIDES
Applicable up to engine No. 91153 		- 1 Enquire
1 206797
LH HEAD COMPLETE WITH GUIDES
Applicable from engine No. 91154 up to engine No. 97780 		$2,703.50 1
2 221341
LH CYLINDER HEAD COVER
Applicable for USA, CDN; Applicable from Ass. No. 67971 		$442.89 1
2 221341
LH CYLINDER HEAD COVER
Not for USA, CDN; Applicable from Ass. No. 69639 		$442.89 1
2 224063
LH CYLINDER HEAD COVER
Applicable for USA, CDN; Applicable up to Ass. No. 67970 		$1,112.73 1
2 224063
LH CYLINDER HEAD COVER
Not for USA, CDN; Applicable up to Ass. No. 69639 		$1,112.73 1
3 198928
LH Head Cover Gasket
IN STOCK 		$41.22 (33.5% off) 1
4 229163
HEAT SHIELD 		$322.28 1
5 212466
STUD BOLT 		$6.34 1
6 248334
SCREW
IN STOCK 		$0.59 1
7 321187
NUT 		- 10 Enquire
8 151117
WASHER
IN STOCK 		$1.06 (7.8% off) 10
9 11197774
WASHER 		$0.06 (80% off) 14
10 156834
ALLEN SCREW M6 X 30 		$3.27 14
11 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 1
11 10441590
BRACKET WITH SHEATH
IN STOCK 		$0.52 1
12 124342
THREADED CONNECTOR
IN STOCK 		$6.25 1
13 282755
THREADED PLUG 		$1.90 6
14 180267
OIL NON RETURN VALVE 		$35.11 1
15 248334
SCREW
IN STOCK 		$0.59 1
16 10261060
GASKET COPPER 12 - 16 X 1.5
IN STOCK 		$0.14 (71.4% off) 1
18 164400
THREADED PLUG
IN STOCK 		$3.35 1
19 223982
SPARK PLUG TUBE SEAL
Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 68460
IN STOCK 		$2.42 (39% off) 4
19 223982
SPARK PLUG TUBE SEAL
Applicable from MY 07; Not for USA, CDN; Applicable from Ass. No. 69639
IN STOCK 		$2.42 (39% off) 4
19 187706
Spark Plug Sleeve Gasket
Applicable for USA, CDN; Applicable up to Ass. No. 68459
IN STOCK 		$7.98 (35.1% off) 4
19 187706
Spark Plug Sleeve Gasket
Not for USA, CDN; Applicable up to Ass. No. 69638
IN STOCK 		$7.98 (35.1% off) 4
20 211641
STUD BOLT
IN STOCK 		$0.99 8
21 102725
CENTERING DOWEL 		$1.03 (54.2% off) 22
22 14326101
THREADED PLUG 		$1.11 (32.7% off) 1
23 134233
O-RING 		$0.45 (70% off) 1
24 199760
THREADED PLUG
IN STOCK 		$0.29 4
25 13541224
STUD BOLT 		$136.76 8
26 13516624
STUD BOLT 		$0.29 2
27 250646
Variable Valve Timing Adjuster Solenoid Valve 		$931.62 (32.1% off) 2
28 11197774
WASHER
No longer supplied 		$0.06 (80% off) 1
29 231619
SCREW
IN STOCK 		$0.29 1
30 11087376
3-POINT CIRCLIP D.12
IN STOCK 		$0.15 (40% off) 1
31 184681
OIL PRESSURE REGULATOR VALVE
IN STOCK 		$439.59 1
33 231619
SCREW
IN STOCK 		$0.29 1
34 11197774
WASHER 		$0.06 (80% off) 1
35 219866
LH INTAKE TIMING SENSOR 		$303.20 1
35 219867
LH EXHAUST CAMSHAFT TIMING SENSOR
IN STOCK 		$257.35 (12.2% off) 1
36 207422
BRACKET 		$50.26 1
37 14040711
NUT
IN STOCK 		$0.35 2
38 11193874
WASHER
IN STOCK 		$0.06 2
39 14059290
FLANGED NUT M6
IN STOCK 		$1.33 22
40 11197774
WASHER 		$0.06 (80% off) 22
41 220239
CAP
No longer supplied 		$6.73 1
42 220245
GASKET
No longer supplied 		$0.14 (86% off) 1
