Fuel Tanks And Filler Neck

Ferrari 430 Coupe

Find Your Part

Ferrari 430 Coupe - FUEL TANKS AND FILLER NECK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
195895 LH FUEL TANK $1,757.86 To Order
Photo Part No Description Price (each) Stock
231404 RH FUEL TANK $2,244.46 To Order
195891 RH FUEL TANK $1,372.59 To Order
Photo Part No Description Price (each) Stock
203516 PIPE UNION $153.47 To Order
Photo Part No Description Price (each) Stock
64686900 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock

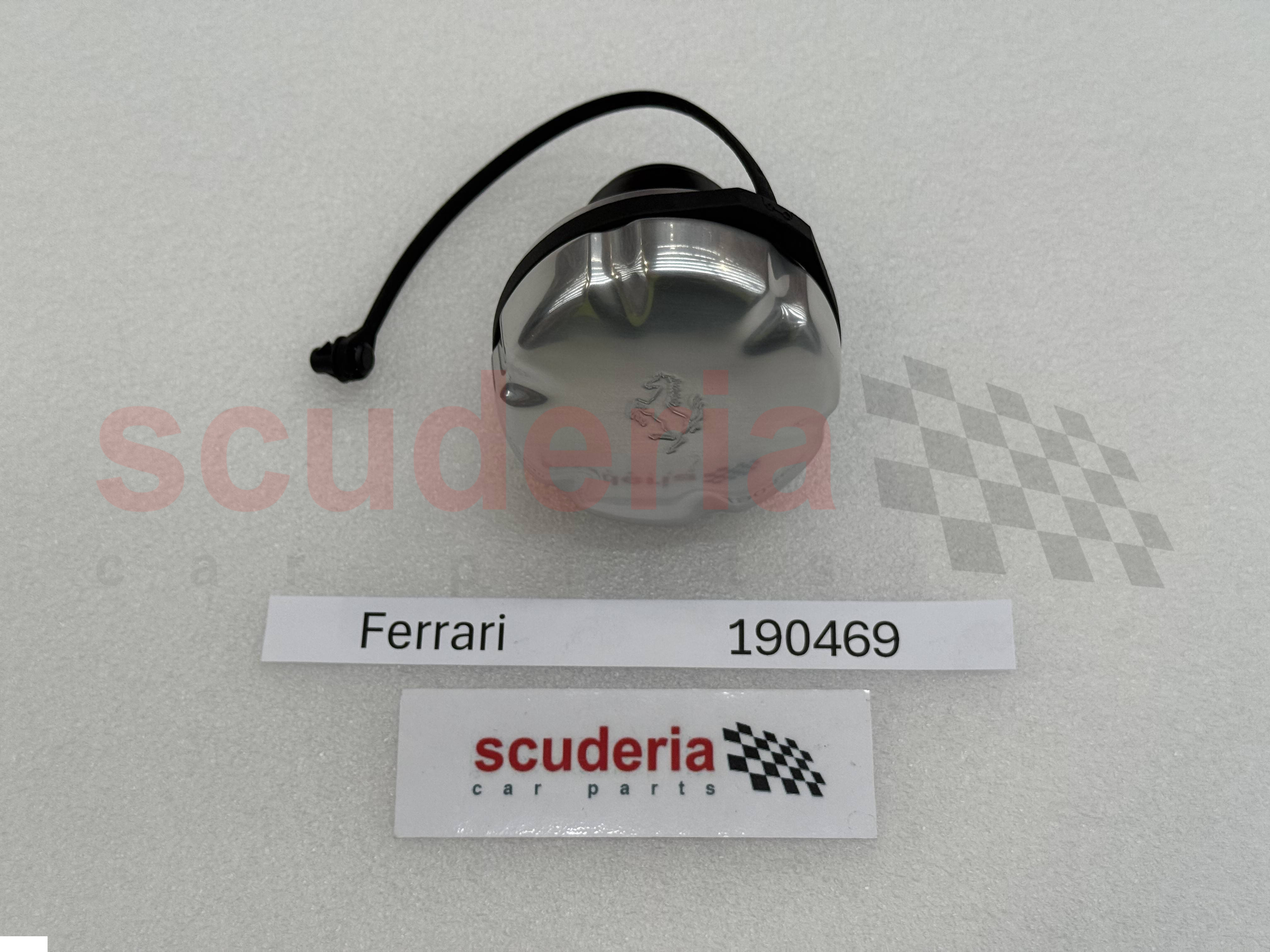

190469 TANK CAP $366.53 To Order
Photo Part No Description Price (each) Stock
235256 GASKET $56.49 To Order
Photo Part No Description Price (each) Stock
11449470 COLLAR $2.58 To Order
Photo Part No Description Price (each) Stock
64872000 PIPE CONNECTOR $4.86 To Order
Photo Part No Description Price (each) Stock
65064500 GASKET $1.94 To Order
Photo Part No Description Price (each) Stock
104919 RING LOCK NUT $4.97 IN STOCK
Photo Part No Description Price (each) Stock
243907 VALVE WITH LH PIPE $381.80 To Order
208895 VALVE WITH LH PIPE $670.36 To Order
Photo Part No Description Price (each) Stock
211283 RUBBER PIPE $56.71 To Order
Photo Part No Description Price (each) Stock
243908 VALVE WITH RH PIPE $120.64 To Order
208894 VALVE WITH RH PIPE $131.33 To Order
Photo Part No Description Price (each) Stock
244882 VAPOUR SEPARATOR $138.09 To Order
209010 VAPOUR SEPARATOR $631.69 To Order
Photo Part No Description Price (each) Stock
62940900 Allen Head Screw M6 x 15 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
860172 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
196949 RING - FUEL TANK $27.48 To Order
Photo Part No Description Price (each) Stock
186172 CLIP $0.46 IN STOCK
Photo Part No Description Price (each) Stock
123622 O-Ring $1.42 IN STOCK
Photo Part No Description Price (each) Stock
148045 FUEL DRAIN PLUG $18.13 To Order
Photo Part No Description Price (each) Stock
177437 RUBBER SHIM $12.39 To Order
Photo Part No Description Price (each) Stock
180957 SCREW COLLAR $0.80 To Order
Photo Part No Description Price (each) Stock
213294 TRAY-TO-3-WAY TUBE $39.94 To Order
Photo Part No Description Price (each) Stock
177553 CLAMP $0.43 To Order
Photo Part No Description Price (each) Stock
195439 THREE-WAY UNION $118.59 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
213295 3-WAY-TO-REAR TUBE $54.13 To Order
Photo Part No Description Price (each) Stock
13432270 HOSE COLLAR $0.86 IN STOCK
Photo Part No Description Price (each) Stock
183098 CLIP $0.57 To Order
Photo Part No Description Price (each) Stock
140727 CLIP $0.25 IN STOCK
Photo Part No Description Price (each) Stock
237407 ANTI SPIT-BACK VALVE $33.51 To Order
181929 SHUT-OFF VALVE $274.89 To Order
Photo Part No Description Price (each) Stock
181930 CLIP $60.16 To Order
Photo Part No Description Price (each) Stock
69101300 VIBRATION DAMPER $0.77 To Order
View All
FUEL TANKS AND FILLER NECK of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 195895
LH FUEL TANK
Applicable until depletion 		$1,757.86 1
2 231404
RH FUEL TANK
Applicable after depletion of 195891 		$2,244.46 1
2 195891
RH FUEL TANK
Applicable until depletion 		$1,372.59 1
3 203516
PIPE UNION 		$153.47 1
4 64686900
SCREW
IN STOCK 		$0.29 (55.4% off) 3
5 11197774
WASHER 		$0.06 (80% off) 3
6 190469
TANK CAP 		$366.53 (8.9% off) 1
7 235256
GASKET 		$56.49 1
10 11449470
COLLAR 		$2.58 2
11 64872000
PIPE CONNECTOR 		$4.86 1
12 65064500
GASKET 		$1.94 1
13 104919
RING LOCK NUT
IN STOCK 		$4.97 1
14 243907
VALVE WITH LH PIPE
Applicable from Ass. No. 78240 		$381.80 1
14 208895
VALVE WITH LH PIPE
Applicable up to Ass. No. 78239 		$670.36 1
15 211283
RUBBER PIPE 		$56.71 1
16 243908
VALVE WITH RH PIPE
Applicable from Ass. No. 78240 		$120.64 1
16 208894
VALVE WITH RH PIPE
Applicable up to Ass. No. 78239 		$131.33 (30.1% off) 1
17 244882
VAPOUR SEPARATOR
Applicable from Ass. No. 78240 		$138.09 1
17 209010
VAPOUR SEPARATOR
Applicable up to Ass. No. 78239 		$631.69 1
18 62940900
Allen Head Screw M6 x 15
IN STOCK 		$1.33 (24% off) 2
19 127494
WASHER 		$0.08 (88.2% off) 2
20 860172
WASHER 		- 2 Enquire
21 196949
RING - FUEL TANK 		$27.48 (27.6% off) 1
22 186172
CLIP
IN STOCK 		$0.46 (8% off) 1
24 123622
O-Ring
Applicable for tank connector pipe 203788, ref. 23
IN STOCK 		$1.42 1
25 148045
FUEL DRAIN PLUG
Applicable for tank connector pipe 203788, ref. 23 		$18.13 (34.3% off) 1
26 177437
RUBBER SHIM 		$12.39 6
28 180957
SCREW COLLAR 		$0.80 (23.8% off) 4
29 213294
TRAY-TO-3-WAY TUBE 		$39.94 1
30 177553
CLAMP 		$0.43 (65.6% off) 1
31 195439
THREE-WAY UNION 		$118.59 1
32 262111
JUBILEE CLAMP
IN STOCK 		$1.42 2
33 213295
3-WAY-TO-REAR TUBE 		$54.13 1
34 13432270
HOSE COLLAR
IN STOCK 		$0.86 1
35 183098
CLIP 		$0.57 1
36 140727
CLIP
IN STOCK 		$0.25 (66.7% off) 2
37 237407
ANTI SPIT-BACK VALVE
Applicable from Ass. No. 82485; Applicable after depletion of 181929 		$33.51 1
37 181929
SHUT-OFF VALVE
Applicable up to Ass. No. 82484; Applicable until depletion 		$274.89 1
38 181930
CLIP
Applicable up to Ass. No. 82484; Applicable until depletion 		$60.16 1
39 69101300
VIBRATION DAMPER 		$0.77 2
